REFLECTIVE FABRIC FOR PPE
Certified Quality Reflective Fabric
Features: Ideal for light to medium weight, polyester and polyester blend fabrics, such as vests and limited use garments. Certified to EN 20471, ANSI 107, AS/NZS 1906, CSA-Z96.
| Item No. | Daytime Color | Backing Fabric | Reflection (cd/lux/m2) | Domestic Washing① | EN 20471/ ANSI 107 |

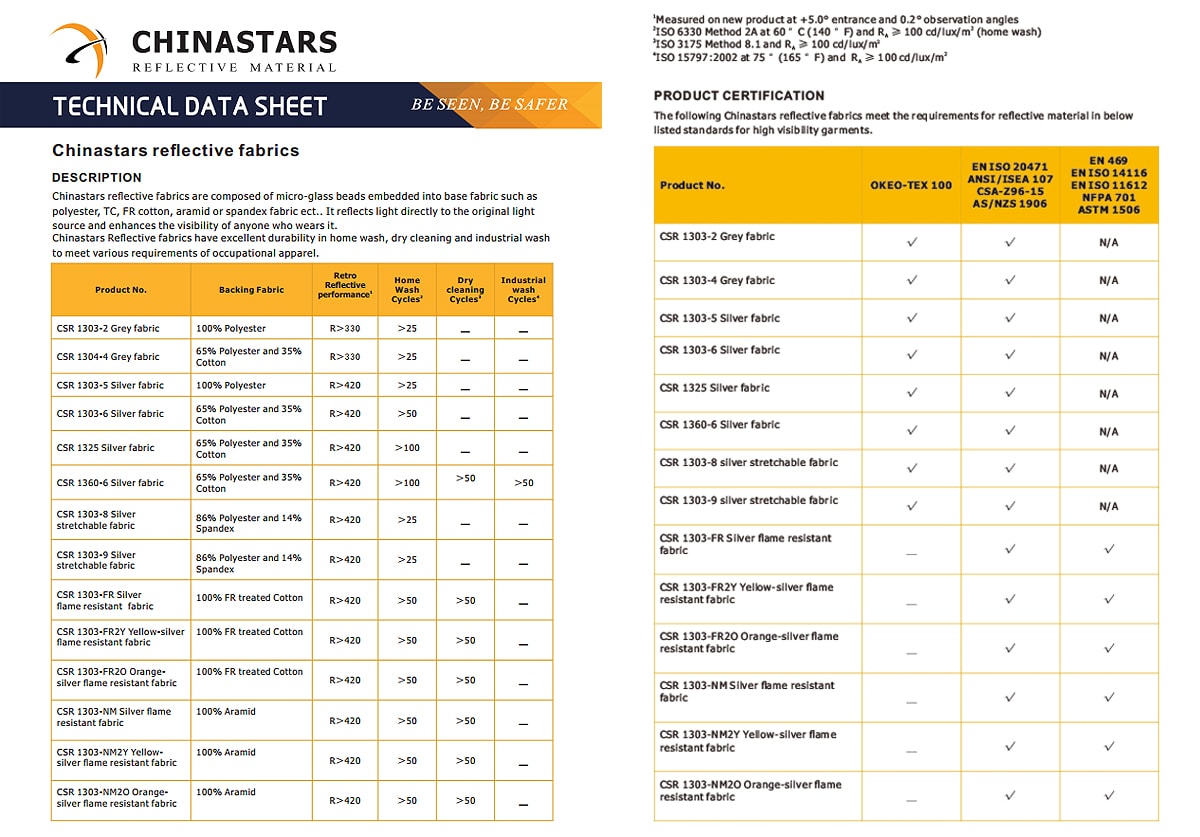

Technical Data Sheet |
CSR-1303-2
|
Grey | Poly | >330 | 25 | Yes | View PDF |
CSR-1303-4
|
Grey | TC | >330 | 25 | Yes | View PDF |
* Width: Any width from 1cm to 140cm.
* ①ISO 6330 method 2A at 60°C(140°F) and RA ≥ 100 cd/lux/m2 (home wash).
Super Quality Reflective Fabric
Features: Ideal for medium to heavy weight, polyester and polyester blend fabrics, such as jackets and industrial garments. Certified to EN 20471, ANSI 107, AS/NZS 1906, CSA-Z96.
CSR-1360-6 is suitable for applications that will be exposed to industrial laundering.
| Item No. | Daytime Color | Backing Fabric | Reflection (cd/lux/m2) | Domestic Washing | Industrial Washing | Technical Data Sheet |
CSR-1303-5
|
Silver | Poly | >420 | 25 | / | View PDF |
CSR-1303-6
|
Silver | TC | >420 | 50 | / | View PDF |
CSR-1303-6B
|
Silver | TC | >330 | 25 | / | View PDF |
CSR-1325
|
Silver | TC | >420 | 100 | / | View PDF |
CSR-1360-6
|
Silver | TC | >420 | 50 | 25 | View PDF |
CSR-1303-8
|
Silver | Poly&Spandex | >420 | 25 | / | View PDF |
CSR-1303-8N
|
Silver | Poly&Spandex | >420 | 50 | / | View PDF |
CSR-1303-9
|
Silver | Poly&Spandex | >420 | 25 | / | / |
* Width: Any width from 1cm to 140cm.
* CSR-1360-6 can sustain 50 cycles dry cleaning.
Cheap Quality Reflective Fabric
Features: Ideal for cheap and economical garments, such as cheap and non-rated Vests.
Self-Adhesive Reflective Fabric
Features: Reflective fabric with self-adhesive backing, easy to apply on backpack, raingear, bicycles, helmets or other sports protections that would be difficult to sew reflective fabrics onto.
| Item No. | Daytime Color | Backing Fabric | Reflection (cd/lux/m2) | Domestic Washing | EN 20471/ ANSI 107 |
Technical Data Sheet |
CSR-1303-2B-ZN
|
Grey | Poly | >330 | 25 | Yes | / |
CSR-1303-4B-ZN
|
Grey | TC | >330 | 25 | Yes | / |
Custom Reflective Fabric

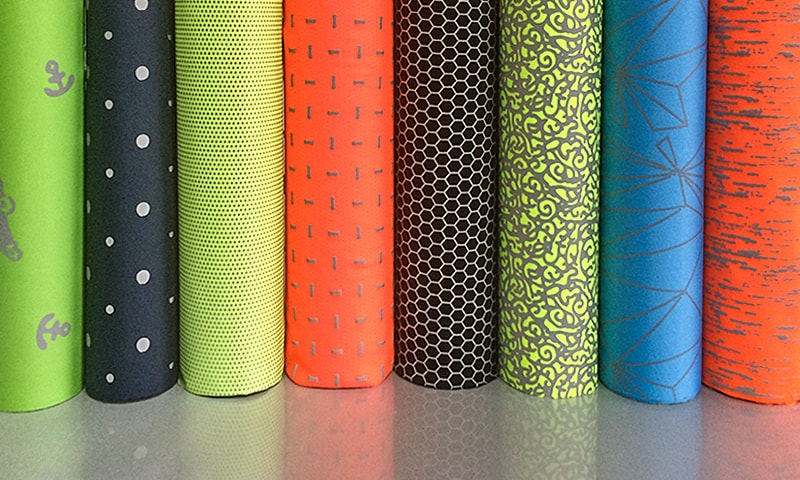

Perforating, laser printing and screen printing are all available for making the reflective fabric more fashionable, breathable and unique.
