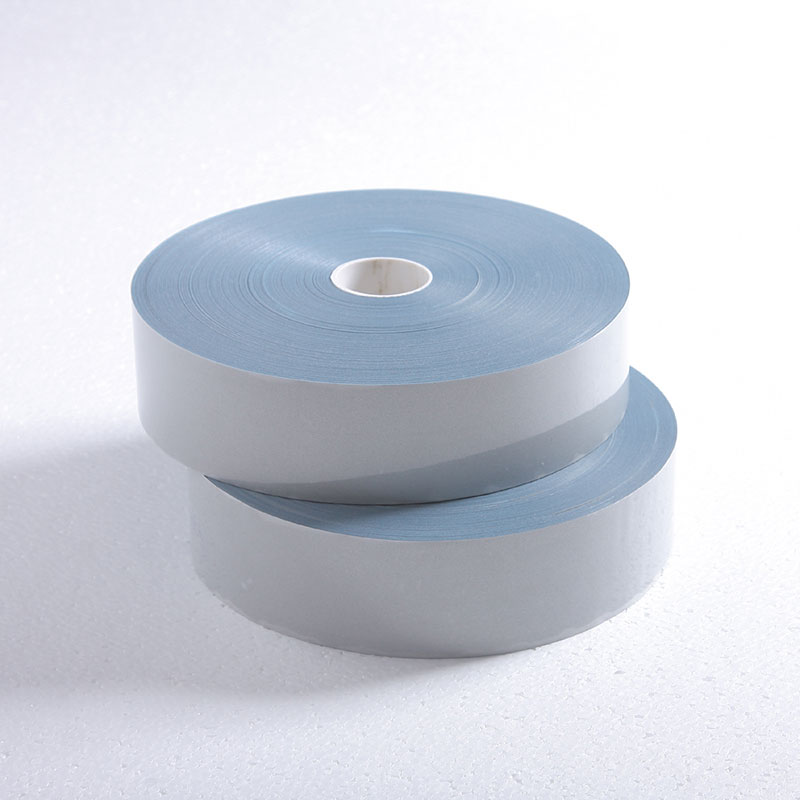

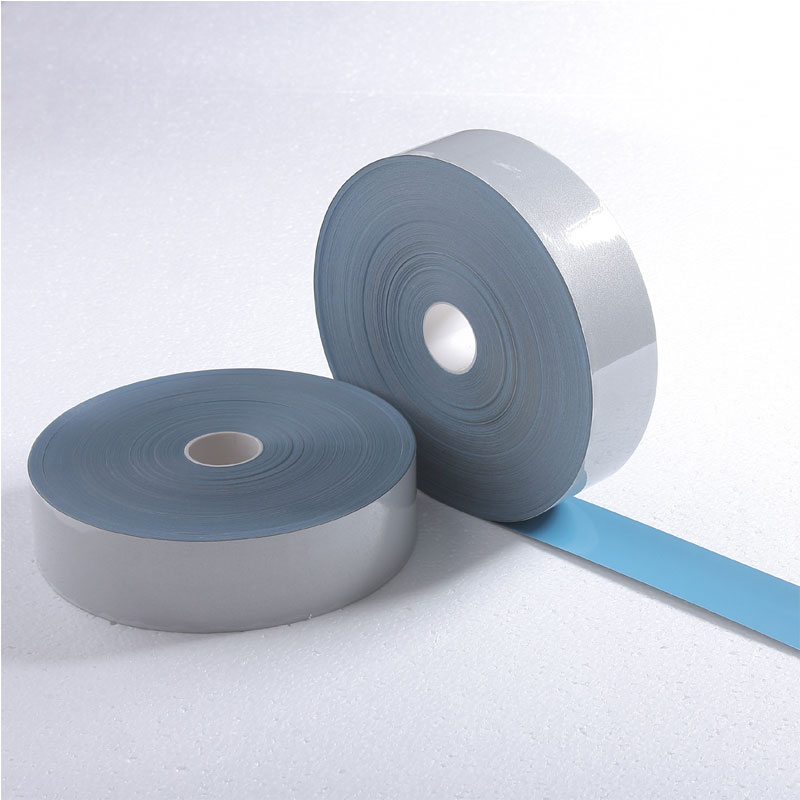

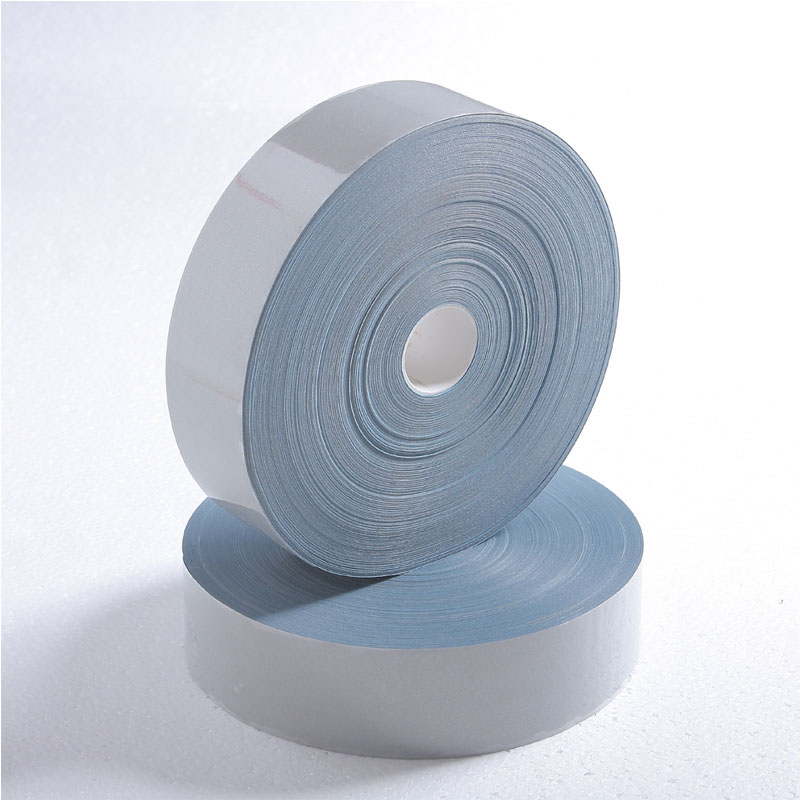

Silver Elastic iron on reflective heat transfer tape

DETAILS

• 1. CS-4003E Elastic iron on reflective tape is comprised of wide-angle exposed micro-glass beads that are firmly bonded to a heat-activated adhesive, ensuring optimal durability and performance.

• 2. Good elasticity:

• The elastic material of the reflective tape allows for flexibility and comfort, making it suitable for various applications.

• 3. High visibility & high quality:

• CS-4003E reflective heat transfer tape has undergone rigorous testing and certification to meet the highest international standards for high-visibility materials, including EN ISO 20471 and ANSI 107.

• 4. Easy to use:

• The reflective heat transfer tape can be easily applied using an iron or a heat press, making it a user-friendly solution.

• 5. Customizable:

• The reflective heat transfer tape can be customized with your own design or logo, allowing for maximum brand visibility.

• 6. Usage:

  To apply the silver elastic iron on reflective tape, simply place the tape on the fabric with the reflective side facing up, cover it with a thin cloth or parchment paper, and apply heat using an iron or a heat press. The reflective tape can be cut to the desired length and shape, allowing for custom designs and applications.

• Guidelines for CS-4003E Elastic iron on reflective tape

• Heat Press Machine	Temperature	Dwell Time	Line Pressure
  	150-170℃	10-20s	>0.5kg/cm²
  Heated Roll Laminator	Temperature	Rotate Speed	Line Pressure
  	120-140℃	4-8m/min	4kg/cm²



RESOURCES

• Catalogue

  Reflective Material Catalogue (PDF, 1.5MB)

• Data Sheet

  Reflective Heat Transfer Film Data Sheet (PDF, 518KB) CS-4003E Technical Data Sheet (PDF, 673KB)
