CS-4002

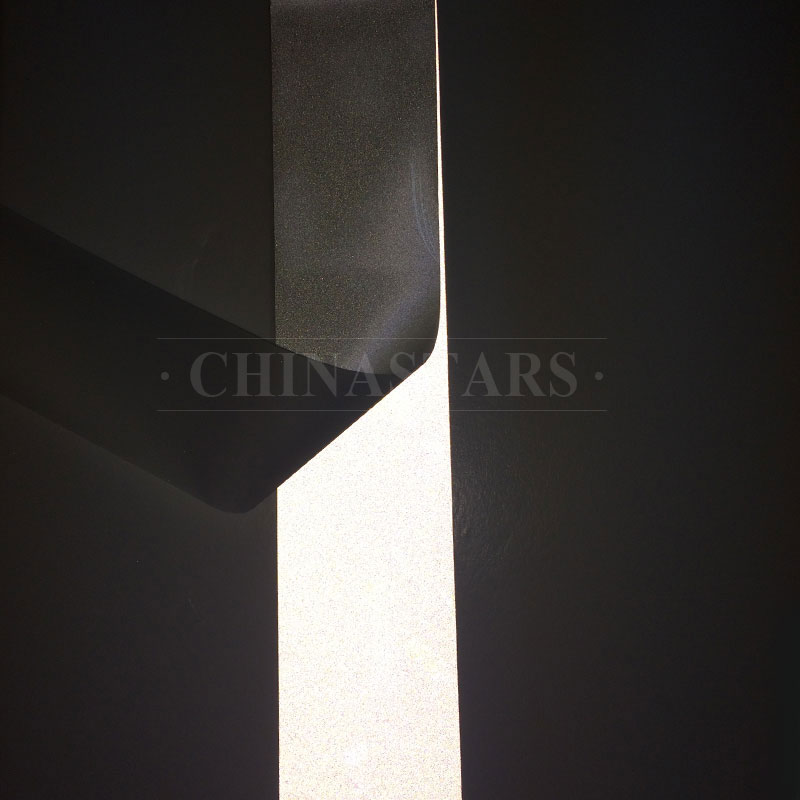

High visibility reflective iron on tape heat transfer vinyl

  • Attachment Type: heat pressing
  • Daytime Color: Grey
  • Backing material: PET film and hot melt adhesive
  • Reflective brightness: >260 CPL
  • Home Wash Cycles: >15 cycles
  • Width: up to 140cm, various sizes can be customized
  • Application: suitable for anti-light heat on non-elastic fabrics such as polyester and knitting.
  • Feature: Economical, cost-effective
Contact Us

DETAILS

  • 1. Product composition: the combination of wide-angle exposed micro-glass beads seamlessly fused with a heat-activated adhesive.
  • 2. Can be cut by a plotter or laser machine into graphics, characters, and logos, and transferred to many non-stretchable fabrics.
  • 3. Silver grey iron on reflective tape for heat transfers on t-shirts, vests, and other fabrics.
  • 4. More economical compared with other reflective heat transfer tapes.
  • 5. Width: any width from 1cm to 140cm.
  • 6. Customized patterns are available.
  • 7. Packing: 50M/Roll,100M/Roll, or customized.
  • 8. Washing depends on the condition of substrates and heat transfer operations. If you have any interest, please feel free to contact us for samples.



GUIDELINES FOR CS-4002 IRON ON REFLECTIVE TAPE

Heat Press Machine Temperature Dwell Time Line Pressure
140-160℃ 8-20s >0.5kg/cm²
Heated Roll Laminator Temperature Rotate Speed Line Pressure
120-140℃ 4-8m/min 4kg/cm²



Storage guidelines:

  • 1. Pls store the reflective heat press vinyl in a dry and cool place with a temperature range of 10-25℃(50-70℉).
  • 2. Avoid exposure to direct sunlight, moisture, and heat sources.
  • 3. Keep the reflective iron-on vinyl in its original packaging until ready to use.
  • 4. Do not fold or crease the reflective heat transfer film as this may damage the reflective layer.
  • 5. Store the CS-4002 iron on reflective tape away from chemicals, solvents, and other materials that may cause damage or contamination.
  • 6. Use this reflective heat transfer tape within the recommended shelf life, which is typically 1 years from the date of manufacture.
