|Backing Fabric||PET film and heat melt adhesive|
|Reflective Coefficient||R> 420 cd/lx.m2|
|Washing Instruction||Home wash up to 50 cycles @ 60°C (ISO63302A), depends on the condition of the substrates and heat transfer operations|
|Certification||OEKO-TEX 100; EN ISO 20471 Class 2; ANSI/ISEA 107-2010 Level 2; AS/NZS 1906.4-2010; CSA-Z96-02|
|Application||Heat applied on non-stretchable fabric, like polyester, knitting fabric, Oxford etc.|
|Delivery Time||7 days after receiving payment or deposit|
|Departure Port||Ningbo or Shanghai|
|Supply Ability||1,500,000 m²/ month|
|Reflective Heat Transfer Film|
|Product Number||Adhesive Side liner||Reflective Side liner||Elasticity||Initial Average R1||Minimum R2||Home Wash Cycles3||Oeko-tex 100||EN ISO 20471||ANSI/ISEA 107-2010||AS/NZS 1906.4-2010||CSA-Z 96-02|
|CS 4003||None||Clear polyethylene||X||500||330||50||√||√||√||√||√|
|CS 4003E||Blue polyethylene||Clear polyethylene||√||500||330||50||√||√||√||√||√|
R1: Measured by Chinastars on new product at +5.0° entrance and 0.2° observation angles.
R2: ANSI/ISEA 107-2010 and EN ISO 20471 minimum coefficient of retroreflection for Level 2 retroreflective material.
3 Home wash according to ISO 6330 Method 2A at 60 °C and product maintain R ≥ 100 cd/lux/m3.
For more reflective fabric data, please refer to our catalogue for reflective material , you can either browse it online or download it.
Reflective heat transfer film can be cut by plotter or laser machine into GRAPHICS, CHARACTERS and LOGOS and transferred to all kinds of fabric base by heat and pressure, such as high visibility garment, sportswear, outdoor products; caps, bags, shoes etc.
Personalize your NAME, TOWN, STATE with our reflective heat transfer film. Let us create a logo design that is uniquely yours.
Step 1 Place the heat transfer film on fabric with adhesive side down and apply heat and pressure as described below.

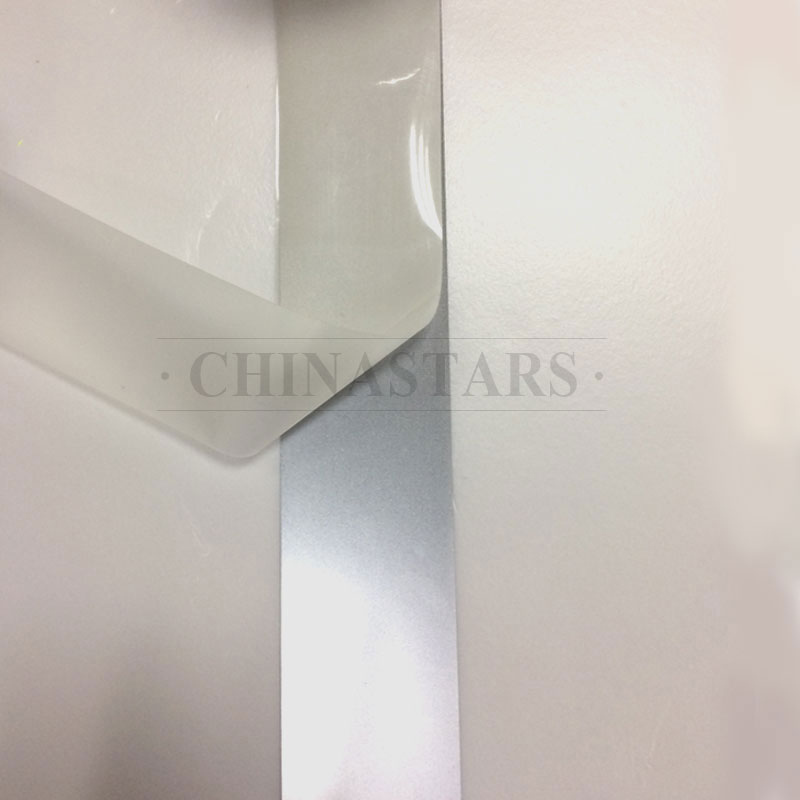

Step 2 Allow heat transfer film to cool to room temperature. Remove the reflective liner by lifting one corner and pulling (180°angle) in a continuous, smooth manner.
|Machine||Temperature||Dwell Time/Rotate Speed||Line Pressure|
|Heat Press machine||155-165℃||8-20 seconds||>0.5 kg/cm2|
|Heated roll laminator||130-150℃||4-8 m/min||
1.The lamination temperature, time, speed and pressure listed above shall be used as a guide. For each fabric, the proper conditions much be tested beforehand to assure adequate adhesion and physical performance.
2.Work on a flat surface where heat and pressure can be applied. Do not heat over seams and stitches.
3.Do not exceed lamination temperatures listed above because the clear polyethylene liner may become difficult to remove and affect the physical performance. If high temperatures are required for bond durability, follow lamination steps 1-3 using recommended temperature, remove paper liner, and then laminate again at the higher temperature (using a non-stick slip sheet or cotton fabric to protect reflective surface).
4.Use within one year from the production date.
Most of our heat transfer film contains aluminum layer, and sweat /oil/ water stains may occur if the surface of the product has direct contact with hands during application and is then exposed to hot and humid conditions. Even though these blemishes won’t affect performance of the product, we strongly recommend handling the reflective fabric with gloves and keeping them in the environment of below 26.7 °C (80 °F) and lowering than 70% relative humidity.
Some suggestions for extending the life of reflective heat transfer film on safety clothing:
1. When do machine wash, you may use a mild detergent, but No Bleach or Fabric Softener!
2. Try to avoid wash the reflective products with your work jeans or any clothing with rough fabric or edges. The microscopic glass beads on the retro reflective heat transfer film can be worn off by rough texture.
3. Try to line dry your reflective products. If you choose to machine dry, try to remove the product immediately. The added heat can damage the reflective heat transfer film.
