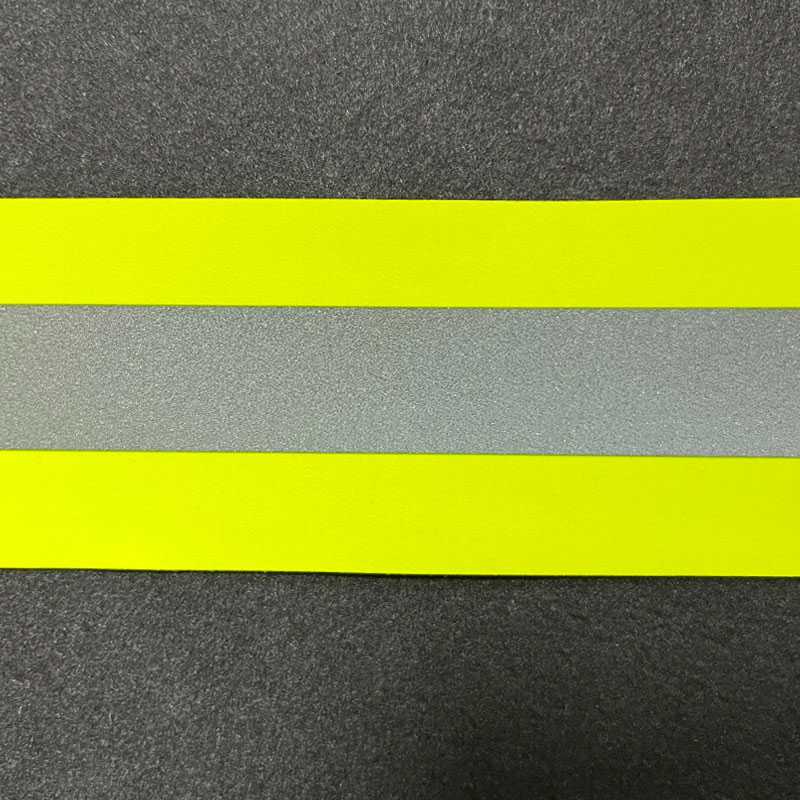

CSR-1303-FR2Y Flame retardant reflective tape yellow-silver-yellow

Flame retardant reflective tape yellow-silver-yellow
Flame retardant reflective tape yellow-silver-yellow Flame retardant reflective tape yellow-silver-yellow
Color Yellow-silver-yellow
Backing Fabric FR treated Cotton
Reflective Coefficient R> 420 cd/lx.m2
Washing Instruction Home wash 50 cycles @ 60°C (ISO6330); Industrial wash 25 cycles @ 85°C (EN ISO 15797)
Certification OEKO-TEX 100; EN 20471 Class 2; ANSI/ISEA 107-2010 Level 2; AS/NZS 1906.4-2010; CSA-Z96-02; EN 533; NFPA 701; ASTM F 1506
Width 2 or 3 inches
Packing 50 meters/R
Delivery Time 7 days after receiving payment or deposit
Departure Port Ningbo or Shanghai
Supply Ability 1,500,000 m²/ month
Flame Retardant Reflective Tape
Product Number Backing fabric Initial Average R1 Minimum R2 Home Wash Cycles3 Industrial Cleaning Cycles4 EN 533 NFPA701 ASTMF 1506 EN ISO 20471 ANSI/ISEA 107-2010 AS/NZS 1906.4-2010 CSA-Z 96-02
CSR 1303-FR FR treated cottonr 420 330 50 25
CSR 1303-FR2Y FR treated cottonr 420 330 50 25
CSR 1303-FR2O FR treated cottonr 420 330 50 25
CSR 1303-NM 100% Aramid 420 330 50 25
CSR 1303-NM2Y 100% Aramid 420 330 50 25
CSR 1303-NM2O 100% Aramid 420 330 50 25

R1: Measured by Chinastars on new product at +5.0° entrance and 0.2° observation angles.

R2: ANSI/ISEA 107-2010 and EN ISO 20471 minimum coefficient of retroreflection for Level 2 retroreflective material.

3 Home wash according to ISO 6330 Method 2A at 60 °C and product maintain R ≥ 100 cd/lux/m3.

4 Industrial cleaning according to EN ISO 15797:2004 at 85°C and product maintain R ≥ 100 cd/lux/m3.

For more reflective fabric data, please refer to our catalogue for reflective material , you can either browse it online or download it.

We supply quality reflective products for sporting activities, fire and rescue departments, law enforcement and first responders as well as hi vis industrial wear for construction and industrial application.

Our reflective fabric can be sewn on high visibility garment, sportwear, outdoor products: caps, bags, shoes etc. for road & utility workers, equipment operators, miners, and other professions where conspicuous visibility is critical to safety.

reflective fabric for PPE

Most of our yellow FR reflective tape contains aluminum layer, and sweat /oil/ water stains may occur if the surface of the product has direct contact with hands during application and is then exposed to hot and humid conditions. Even though these blemishes won't affect performance of the product, we strongly recommend handling the reflective fabric with gloves and keeping them in the environment of below 26.7 °C (80 °F) and lowering than 70% relative humidity.

reflective heat transfer film temperature limit reflective heat transfer film humidity

Some suggestions for extending the life of FR reflective tape on safety clothing:

1. When do machine wash, you may use a mild detergent, but No Bleach or Fabric Softener!

2. Try to avoid wash the reflective products with your work jeans or any clothing with rough fabric or edges. The microscopic glass beads on the retro reflective flame resistant tape can be worn off by rough texture.

3. Try to line dry your reflective products. If you choose to machine dry, try to remove the product immediately. The added heat can damage the flame resistant reflective tape.

Our advantages


ExperienceOur technical team has been engaged in the coating industry for more than 30 years. We've supplied our products to countless companies including Volvo, SAAB, Michelin, Opel etc.

R&DAll equipments self-developed by experienced engineers, highly efficient and energy saving. Up to now, we’ve achieved 23 product patents and 3 technical patents.

Q&CProducts certified by accredited laboratories and meet the criteria of international standards. Products examined by latest tools and internal standard higher than international standards.

DesignExperienced design team helps you to combine fashion with safety, customization available for every product.
